Application of Affinity Selection Mass Spectrometry: Membrane Proteins
Introduction
Membrane proteins are essential for various cellular processes, including energy conversion, signal transduction, and disease progression. Efficient and accurate identification and screening of these proteins are vital for the development of small-molecule therapeutics targeting membrane proteins. In recent years, Affinity Selection Mass Spectrometry (ASMS) has become a powerful tool for studying membrane protein-small molecule interactions and has demonstrated significant potential in drug discovery and development.
Challenges in Membrane Protein Discovery
Membrane proteins, characterized by their complex structures and multiple transmembrane regions, are crucial for the functionality of biological membranes. These domains are essential for maintaining protein stability and activity but often cause challenges such as low expression levels, instability, limited solubility, and complicated purification processes, which hinder in vitro studies and hit screening. Traditional screening methods struggle to detect weakly binding ligands due to issues with target concentration and protein stability, resulting in inefficient screening. Additionally, the high variability among membrane proteins makes optimizing screening conditions expensive. ASMS addresses these challenges by increasing the efficiency and success rate of drug screening for membrane proteins while reducing costs.
Integration of ASMS and Machine Learning for Enhanced Membrane Protein Screening
Machine learning is revolutionizing the current process of drug development, especially in protein structure prediction and drug design. In ASMS-based screening workflows, machine learning facilitates the efficiency of the process is significantly improved through reduced time and cost while enhancing the success rate of candidate identification. By optimizing algorithms, machine learning increases the overall efficiency and effectiveness of ASMS screenings.
Membrane protein development is often hampered by the limited amount of purified, stable, and functional protein. ASMS overcomes these challenges by selecting optimal conditions—such as temperature, pH, and ionic strength—based on the specific properties of the target membrane proteins, thus minimizing interference from non-target components. During sample preparation, specialized detergents are used to enhance the solubility and stability of membrane proteins, preventing issues such as aggregation and denaturation. The ALIS-ASMS system employs precise temperature control, maintaining samples at 4°C throughout the screening process to ensure protein stability. For more complex cases, a multi-conditional screening strategy is used to reduce false positives and enhance result accuracy. Additionally, machine learning algorithms are implemented to predict optimal screening conditions, streamlining the process and minimizing protein consumption.
Among membrane protein targets, GLUT1 is a crucial glucose transporter protein responsible for facilitating the transmembrane transport of glucose. Tumor cells, characterized by high metabolic activity, require substantial amounts of glucose to fuel their rapid proliferation and division. The overexpression of GLUT1 is essential to meet the heightened energy demands of these cells. Beyond regulating glucose uptake, GLUT1 is also involved in the metabolic reprogramming of tumor cells, a strategy that supports their unchecked proliferation. Under hypoxic conditions, tumor cells rely on anaerobic glycolysis to meet their energy needs, and the abnormal expression of GLUT1 is a mechanism that facilitates excessive glucose uptake. This metabolic reprogramming enables tumor cells to adapt to the hypoxic environment, thereby promoting tumor growth and metastasis (Figure 1).

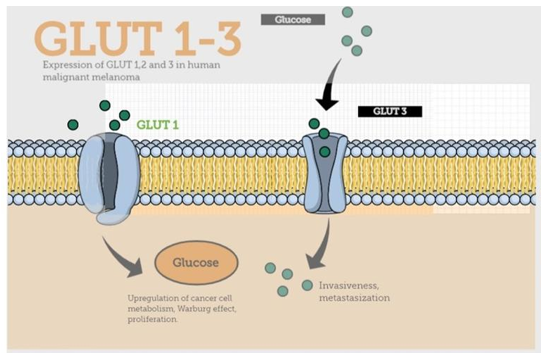

Figure 1: Mechanism of GLUT1 Regulation [1]
With a deeper understanding of GLUT1’s structure and function, researchers are exploring its potential as a drug target (Figure 2). In theory, GLUT1 inhibitors could block glucose uptake by tumor cells, leading to cellular starvation and death. This approach offers valuable insights into novel therapeutic strategies for cancer treatment.

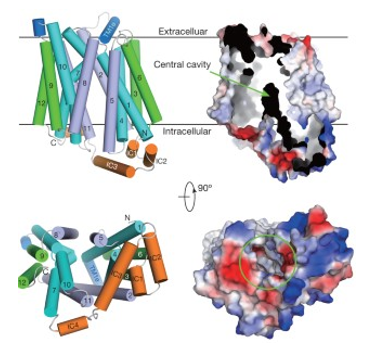

Figure 2: Protein Structure of Human GLUT1[2]
Researchers developed a GLUT1 screening method to accommodate the specific characteristics of membrane proteins, incorporating dodecyl maltoside (DDM) during sample preparation for membrane protein stabilization and solubility. Tight temperature control ensured the preservation of protein integrity during the isolation and detection of candidate molecules. The inclusion of control groups minimized false positives, while automated data processing improved the efficiency and accuracy of sample analysis. Machine learning algorithms were applied to historical screening data to identify high-probability candidate molecules for primary screening via affinity selection mass spectrometry (ASMS), increasing efficiency by 5.8-fold and offering a cost-effective solution (Figure 3). Further validation of these candidates was conducted using nano differential scanning fluorimetry (nanoDSF), with binding assays yielding a dissociation constant (KD) of 35.77 μM in ASMS and an IC50 of 2.3 μM in glucose uptake assays (Figure 7). These results highlight the effectiveness of integrating ASMS with machine learning for membrane protein screening.
Figure 3: ASMS-Based Screening of the Membrane Protein GLUT1 and Crossover Studies
ASMS Platform at WuXi Biology
Established in 2018, the ASMS platform at WuXi Biology is backed by a library of over 270,000 small molecules and offers customized compound screening services. The platform utilizes automated workflows, high-resolution mass spectrometry, efficient data processing software, and standardized protocols. For a single target, it can screen up to 200,000 compounds within 3-4 weeks, with comprehensive validation through functional crossover studies. The platform provides dissociation constant (KD) values to accurately assess small molecule-protein binding affinity, ensuring precise ligand-binding measurements.
References
[1] Cazzato, Gerardo, et al. “GLUT1, GLUT3 expression and 18FDG-PET/CT in human malignant melanoma: what relationship exists? New insights and perspectives.” Cells 10.11 (2021): 3090.
[2] Deng, Dong, et al. “Crystal structure of the human glucose transporter GLUT1.” Nature 510.7503 (2014): 121-125.
